Crawl Space Encapsulation & Repair in Raleigh, NC
Crawl space trouble in the Triangle is usually a humidity problem before it is a water problem. We find what is actually driving the moisture — surface runoff, groundwater moving sideways through Piedmont clay, or humid air condensing on cool surfaces — and scope the fix in that order, with moisture readings and a written scope before anything is quoted.
Who does crawl space encapsulation in Raleigh, NC?
Raleigh Crawl Space Solutions arranges crawl space encapsulation, waterproofing and repair across Raleigh and the Triangle — ground and wall liner, sealed vents and rim joists, drainage where liquid water is present, and mechanical drying that meets NC Residential Code R409. Call (919) 746-7020.
Why crawl spaces fail in the Triangle
Warm air carries far more water vapor than cool air. When humid outdoor air enters a crawl space through the vents and meets surfaces sitting below its dew point — ductwork, supply lines, the underside of the subfloor — the vapor condenses onto them as liquid water. The vents intended to dry the space are what deliver the moisture.
Raleigh has a humid subtropical climate and averages roughly 46 inches of rain a year, with relative humidity sitting in the low-to-mid 70s and climbing through summer. That is why a crawl space here is frequently at its wettest in midsummer rather than after a storm, and why opening more vents usually accelerates the problem rather than relieving it.
Wood begins supporting fungal growth at roughly 20 percent moisture content. Framing is not harmed by a single humid fortnight; it is harmed by months spent above that threshold, season after season. The damage is slow and cumulative, which is why it tends to get noticed upstairs as a springy floor or a smell rather than as a crawl space problem at all.
North Carolina is one of the few states that writes this into code
North Carolina is one of the few states that writes closed crawl spaces directly into residential code. Section R409 of the NC Residential Code governs closed crawl spaces; Section R408 covers traditional vented ones. The 2024 edition became mandatory statewide on July 1, 2025.
That is unusually useful for a homeowner. In most states a closed crawl space is whatever the contractor says it is; here there is a published standard to hold a proposal against — liner spec, seam laps, the termite inspection gap, and a required means of drying the air.
The research that put closed crawl spaces into North Carolina code was carried out here. Advanced Energy, a nonprofit at 909 Capability Drive in Raleigh, ran a multi-year study of matched NC homes with support from the U.S. Department of Energy, and the NC Building Code Council adopted closed crawl space language in December 2004 on the strength of it. That study found vented crawl spaces ran persistently high relative humidity through the cooling season, frequently above 80 percent, while sealed crawl spaces with mechanical drying held roughly 55 to 60 percent — below the range where mold and decay fungi become active.
It reframes the decision. In this climate a vented crawl space is not a neutral baseline that encapsulation improves on — through a Carolina summer it is an assembly that actively imports moisture.
Crawl space services in Raleigh
Encapsulation & Moisture
Crawl Space Encapsulation
Sealing the space and controlling what is left — to the NC R409 standard.
Crawl Space Encapsulation Cost
What moves the number — and how to compare two quotes against NC code.
Crawl Space Encapsulation Contractor
How to vet a contractor, read a quote, and spot an incomplete scope.

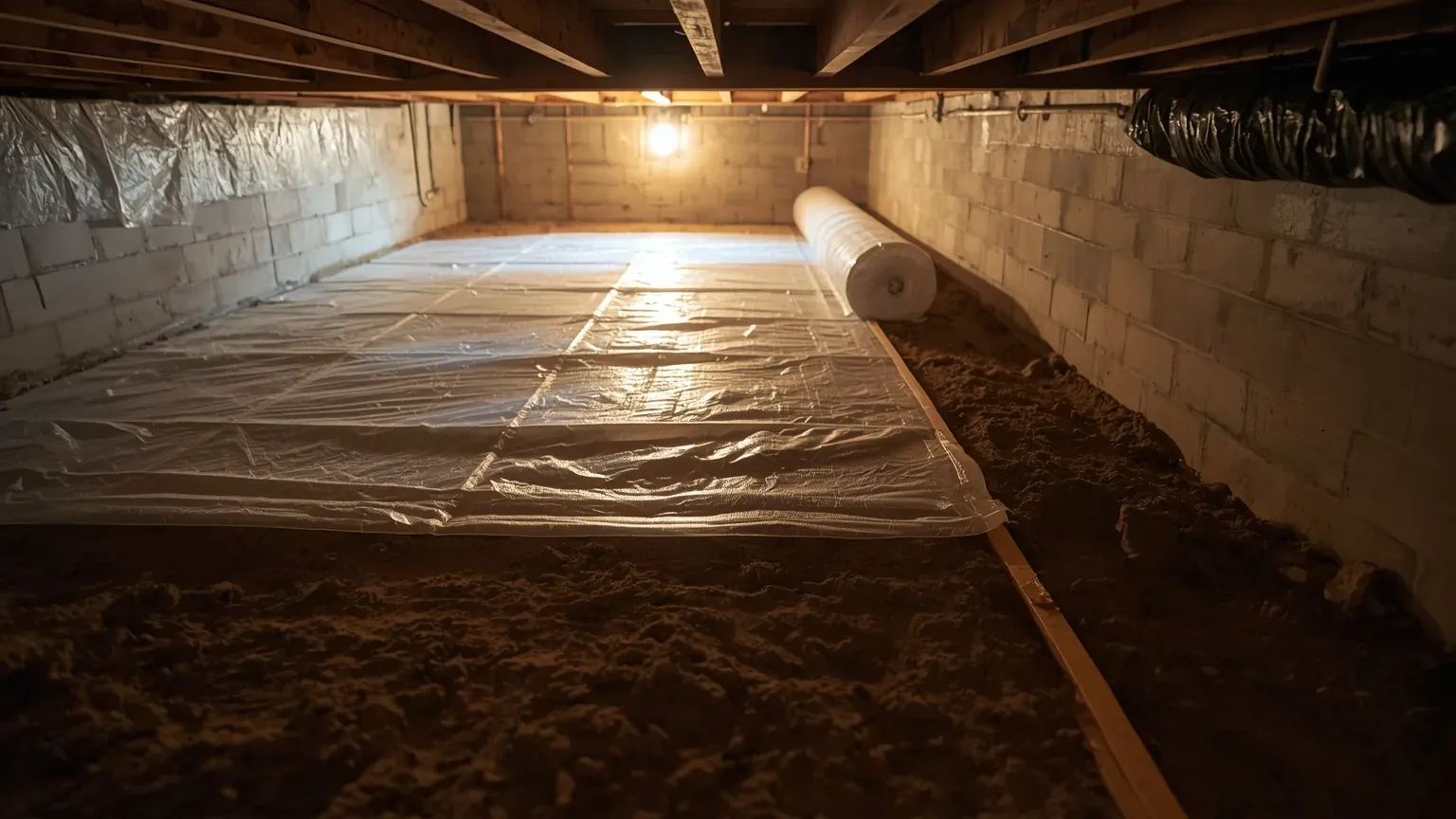

Crawl Space Vapor Barrier
Ground cover that stops soil moisture — and where it stops being enough.
Crawl Space Moisture Control
Working out which of the three moisture sources you actually have.
Crawl Space Dehumidifier Installation
Sizing, condensate drainage and the circuit the code requires.
Water & Drainage
Crawl Space Waterproofing
Liquid water: finding where it enters before anything gets sealed.
Crawl Space Drainage
Grading, discharge and drain lines that give water somewhere else to go.

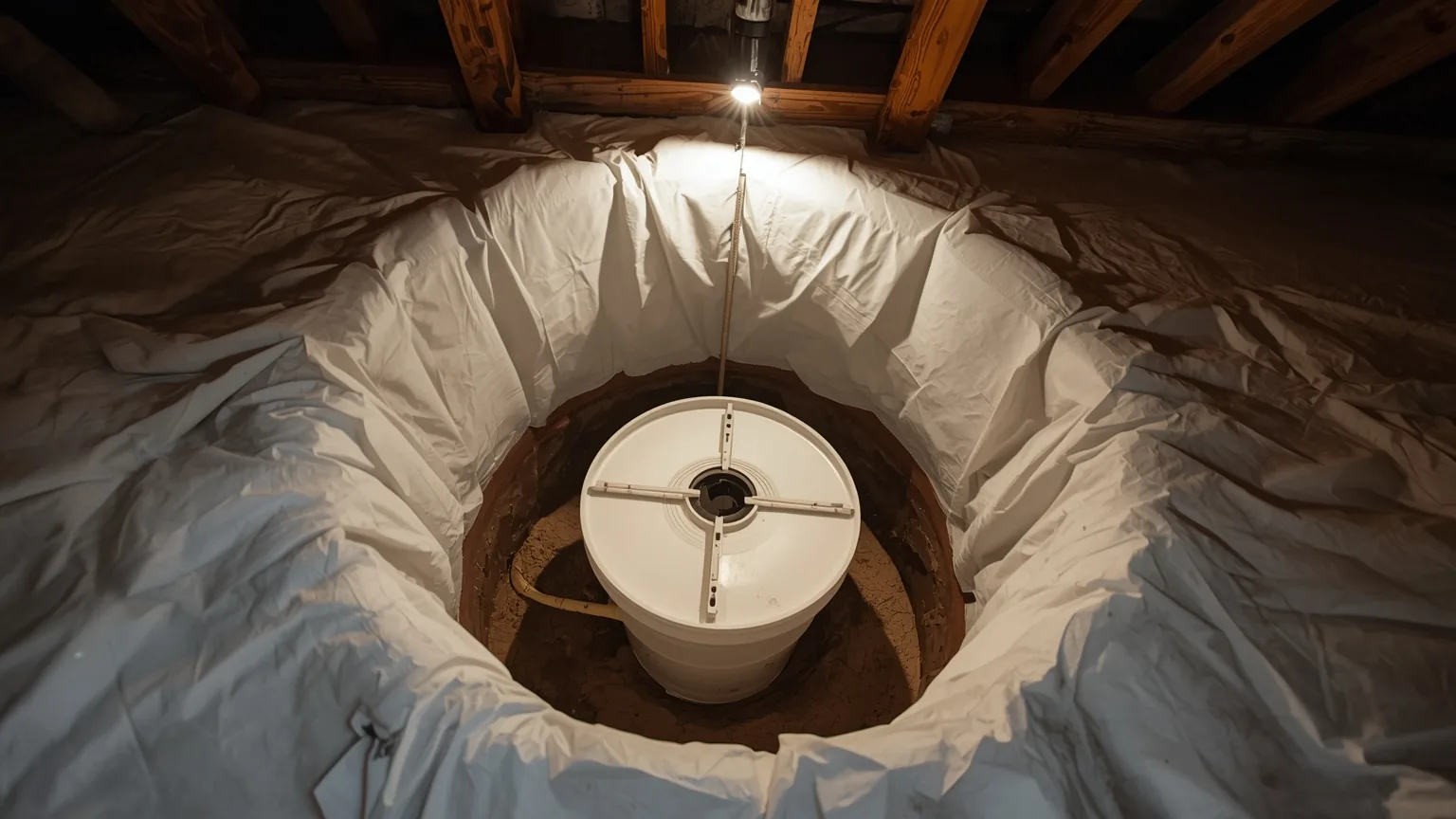

Crawl Space Sump Pump Installation
For crawl spaces with no gravity route out. Basin, pump and discharge.
Repair
Signs a Raleigh crawl space needs attention
Insulation falling or matted
Fiberglass absorbs moisture, gains weight and lets go of the subfloor. What you are looking at is the visible end of a humidity problem that has been running a while.
Musty smell on the ground floor
Air migrates upward through a house, carrying whatever is in the crawl space into the rooms above. Odor that returns every summer points down there.
Springy or sloping floors
Framing that has lost stiffness — moisture-damaged joists, a failing support post, or a pier that has settled. Three different causes, three different repairs.

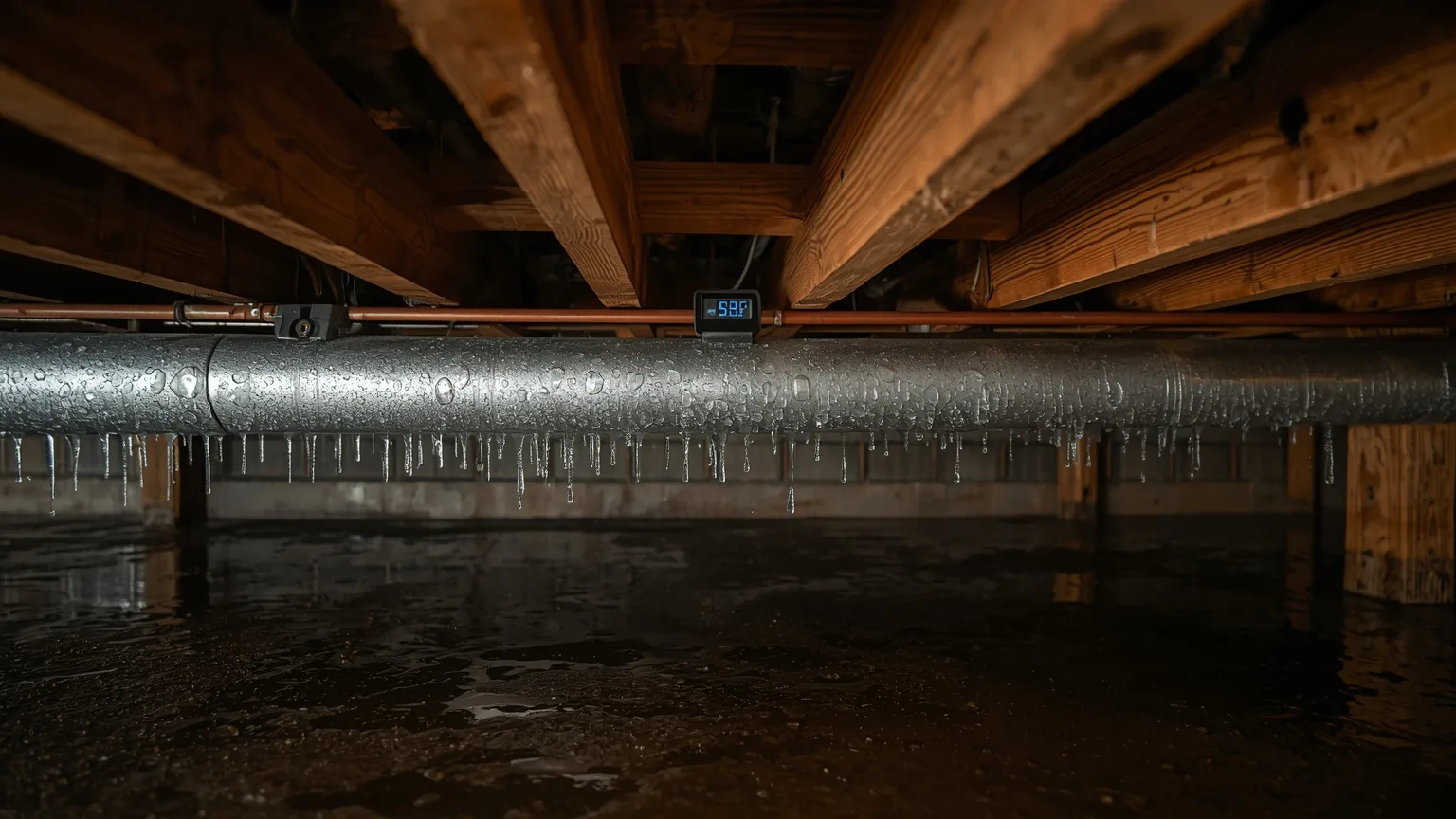

Condensation or rust on ductwork
Water beading on cool metal is humid air hitting its dew point. That water then lands on the framing underneath and stays there.

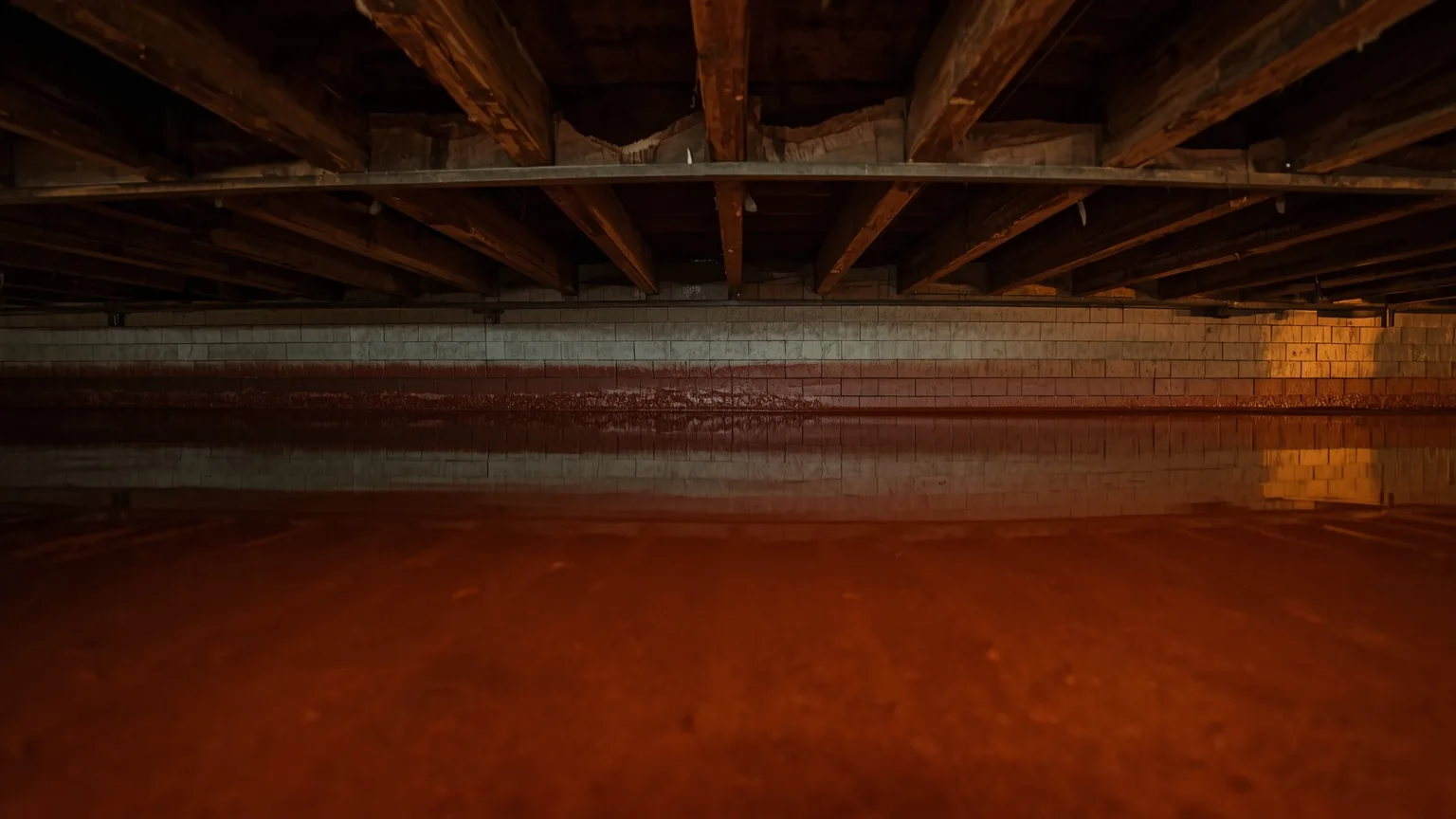

Standing water after rain
A drainage problem, not a vapor problem, and it has to be solved before any liner goes down — otherwise the liner simply covers it.
Indoor humidity that will not drop
An air conditioner fighting a continuous supply of moist crawl space air runs long and still leaves the house feeling damp.

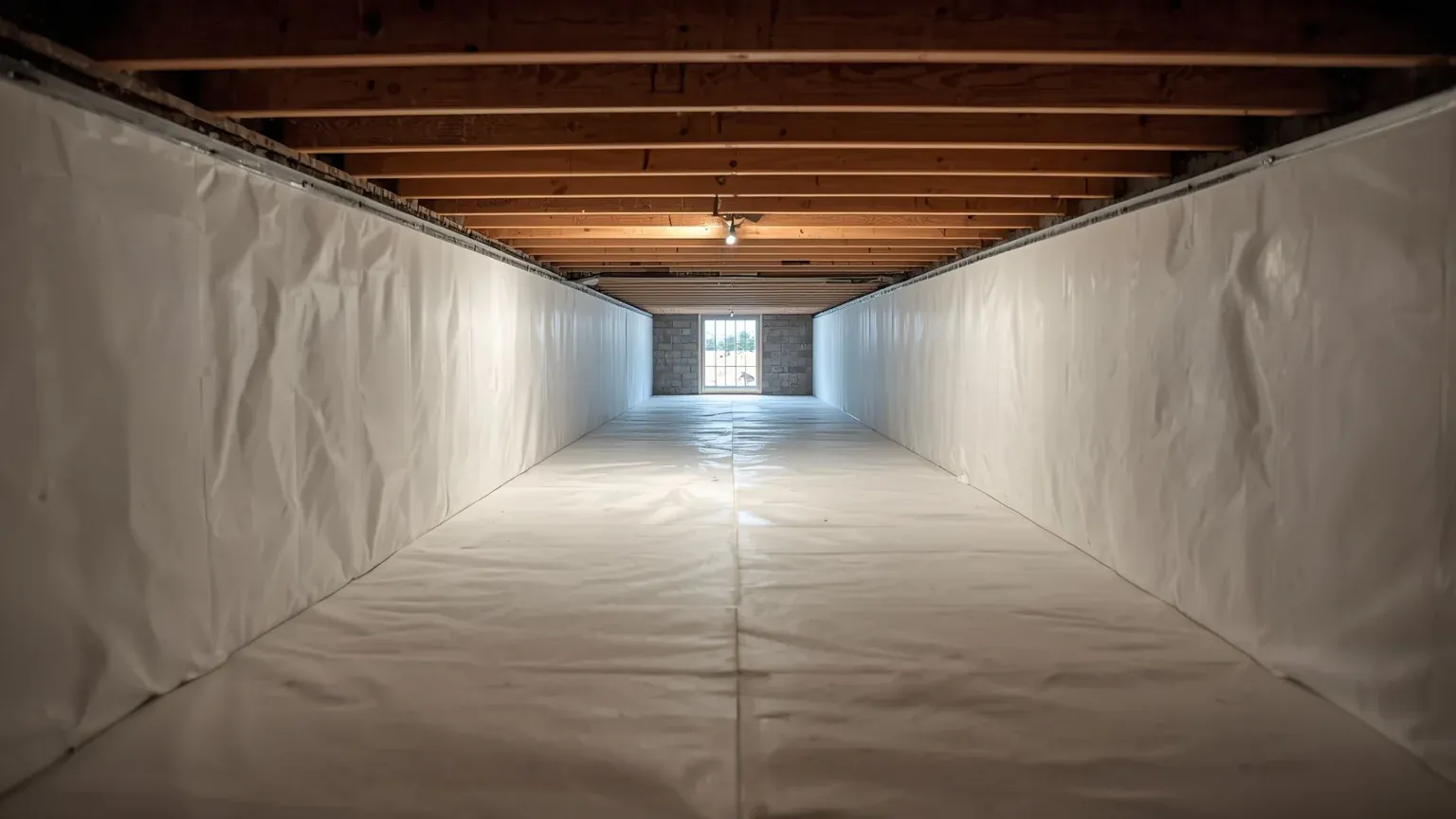

Encapsulation, and when it is the right answer
Not every crawl space needs encapsulating. A space that is genuinely dry, with framing measuring in a normal moisture range, no condensation staining and no odor reaching the house, may need nothing more than targeted repairs or a vapor barrier over the ground.
Encapsulation is the right recommendation when moisture is chronic rather than occasional — persistent condensation, fungal growth on framing, insulation that has fallen, or humidity that stays high right through the summer regardless of the weather. Sealing then has to be paired with a means of drying the air, which R409 requires and which is where an incomplete installation usually shows.
A contractor who recommends encapsulation without measuring anything is guessing. If you are at the stage of comparing companies rather than understanding the service, our guide to choosing an encapsulation contractor covers what NC licensing actually means and the four questions that separate a complete scope from a liner sale.

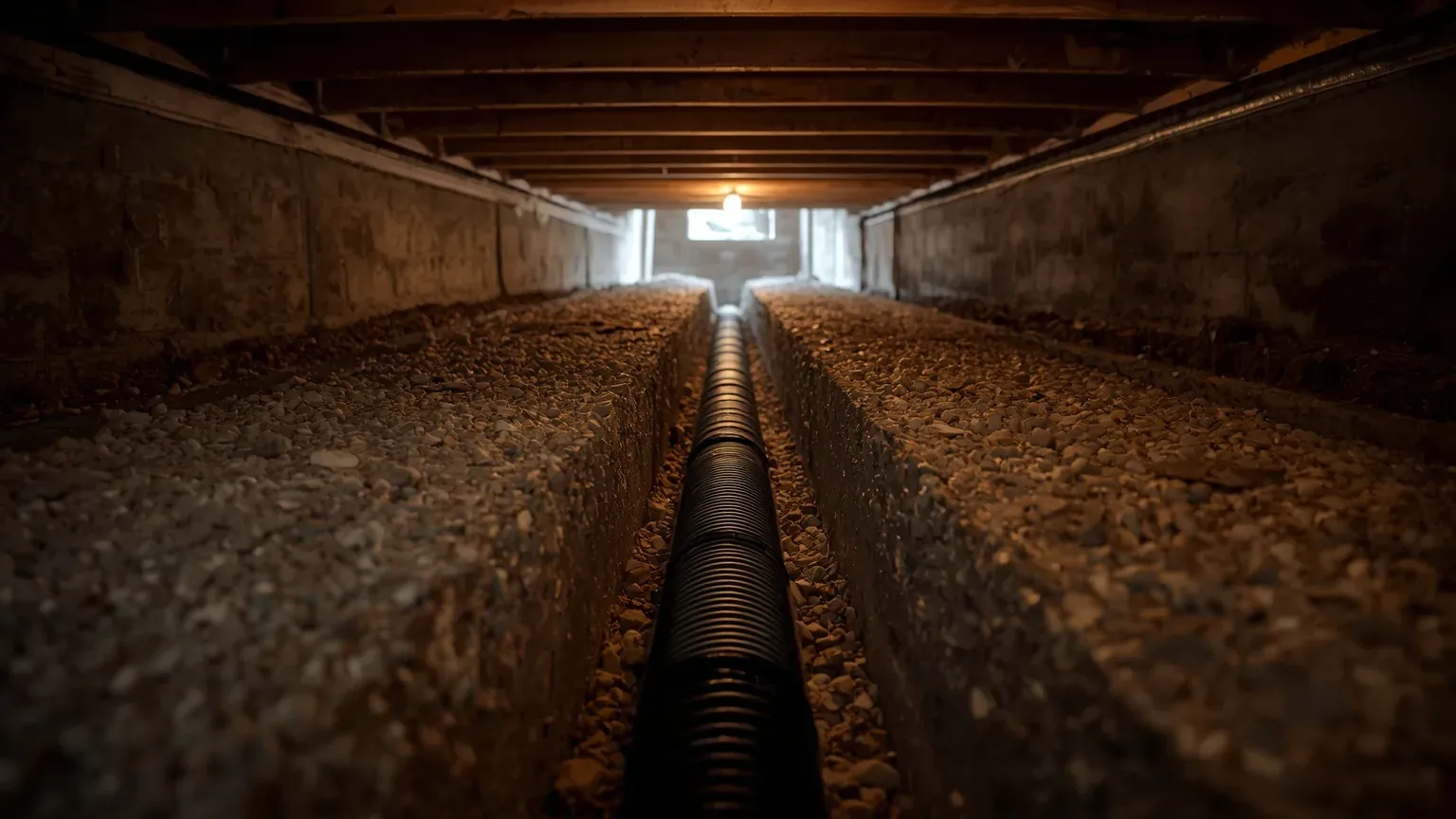

Water, drainage and where it actually comes from
If your crawl space holds standing water, that is a waterproofing problem and it comes first. A liner installed over a space that still takes on water does not stop the water — it puts a sheet of plastic over it, and now the water collects where nobody can see it.
The Triangle sits on the Piedmont. The dominant soil is the Cecil series, North Carolina's state soil, which covers more than 1.6 million acres statewide — deep red clay colored by kaolinite and iron oxides, typically 6 to 8 feet deep before it gives way to saprolite, the soft weathered rock beneath. Cecil soils are classed as well drained on ridges and side slopes, but the clay content itself slows permeability, and decades of grading and compaction around subdivisions slow it further. Water that cannot move down moves sideways instead, which is why a crawl space can take on water while the yard above it looks dry. Two houses on the same street can behave very differently depending on how each lot was cut and filled, so a neighbor's diagnosis rarely transfers to your house.
The most common causes are simpler and cheaper than homeowners expect: gutters discharging at the foundation, downspouts ending at the wall, and grading that has settled back toward the house. A competent evaluation checks those before proposing drainage work or a sump system.

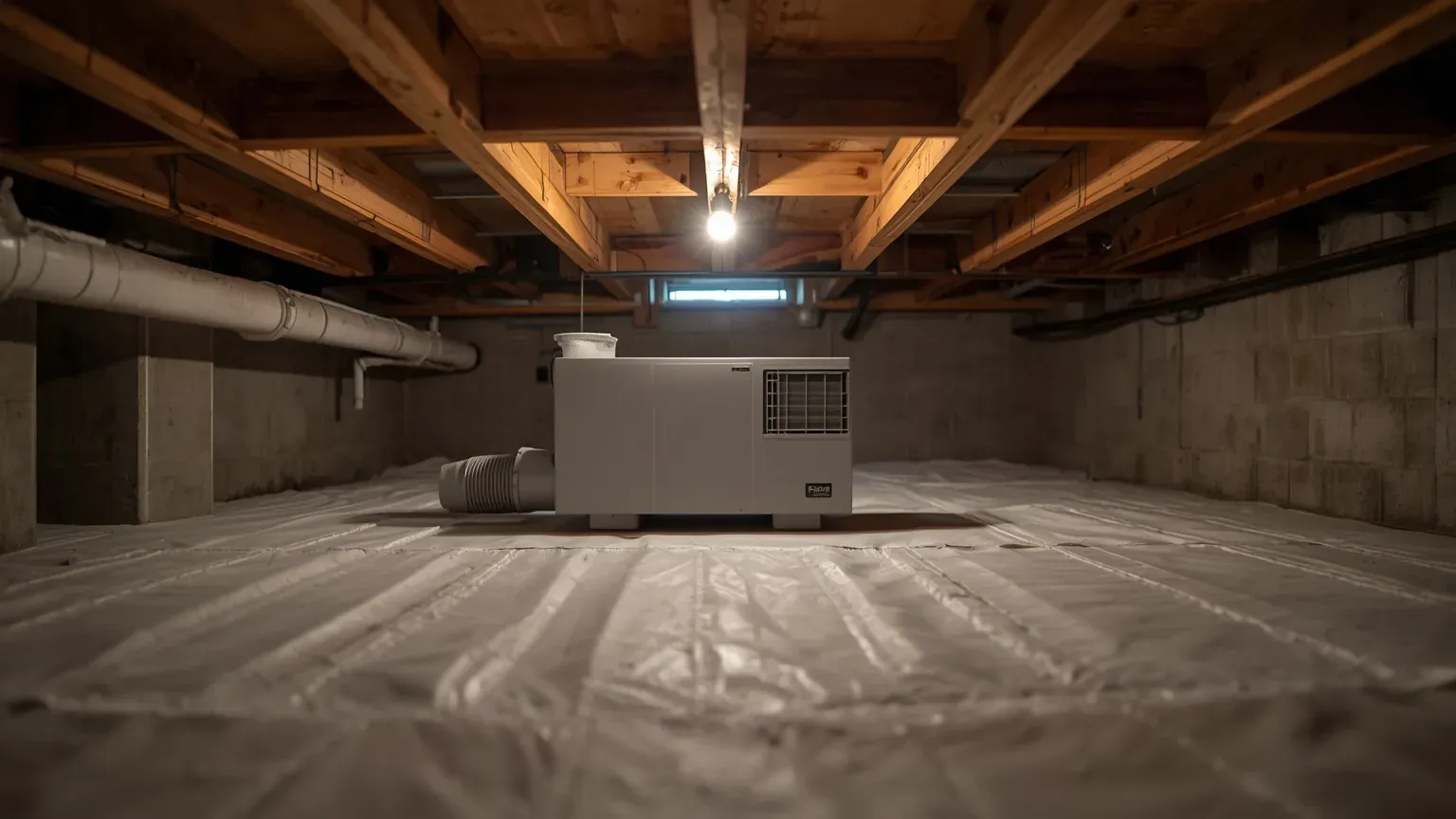

Humidity control after the space is sealed
Sealing a crawl space removes most of the incoming moisture, but it also removes the air exchange that used to carry some of it away. That is why NC code does not treat drying as optional — R409.5 requires a closed crawl space to have a means of drying the air. The accepted methods include a dehumidifier of at least 15 pints per day, a conditioned air supply of 1 CFM per 30 square feet of crawl space floor, or an exhaust fan at 1 CFM per 50 square feet. Sealing a crawl space without one of these is an incomplete installation.
Which method suits your house depends on the HVAC layout and on how the sealed space behaves once it is closed — something worth measuring rather than assuming. Our pages on dehumidifier installation and moisture control go through the options and the sizing.

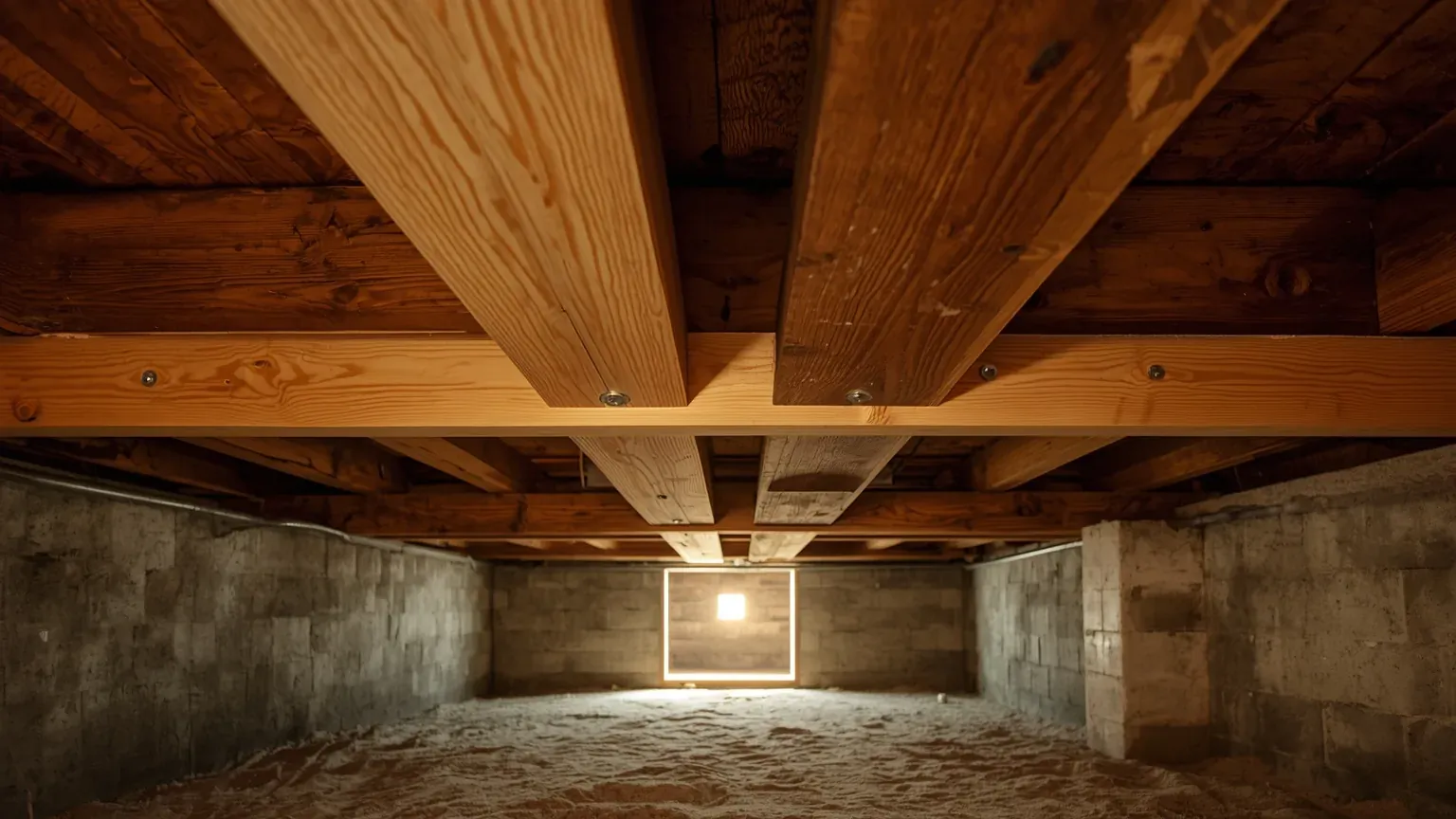

Structural damage, and why moisture comes first
Crawl space structural repair is usually moisture damage that ran long enough to reach the framing — softened joists, deteriorating subfloor, failing support posts. Upstairs it shows up as floors that feel springy or slope, and doors that stop latching square.
Replacing a rotted joist in a crawl space that is still wet buys time, not a solution: the new timber sits in the conditions that destroyed the old timber. Any sound proposal establishes the moisture source, stops it, repairs the damage, then controls the remaining humidity so it does not return. A contractor proposing structural repair without addressing the water is selling you the same job twice.

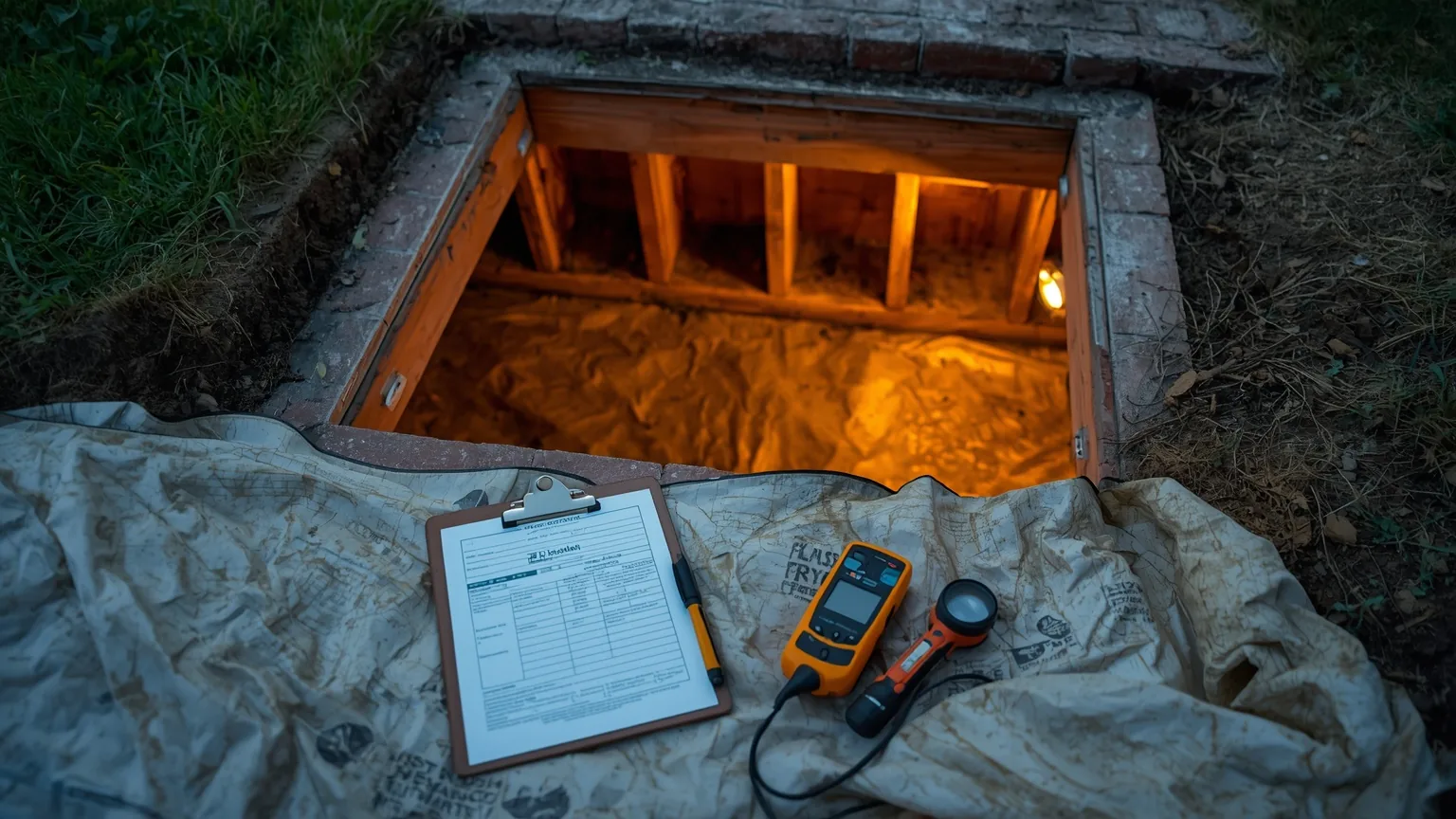

How an evaluation works
- You call or send the formTell us what you are seeing and when it happens. The seasonal pattern matters — water after heavy rain points somewhere different from damp that peaks in still August heat.
- An on-site evaluationA contractor goes under the house, takes moisture content readings on joists, beams and subfloor at several points, and establishes where water is entering.
- A written, itemized scopeWhat will be done, in what order, and why — sequenced so water is addressed before damage, and damage before sealing. Not a single number against one word.
- You compare it against codeBecause North Carolina writes closed crawl spaces into R409, you can check a proposal against a published standard rather than against a competitor’s marketing.
Serving Raleigh and the Triangle
Raleigh · Cary · Apex · Wake Forest · Garner · Holly Springs · Fuquay-Varina · Morrisville · Knightdale · Wendell · Rolesville · Clayton
Crawl space work across Wake, Durham, Johnston, Franklin, Harnett and Chatham counties, within roughly 35 miles of Raleigh. Crawl space foundations are common right across Wake County, from pre-war bungalows inside the Beltline to the large subdivisions built out through Cary, Apex and Wake Forest before slab-on-grade became the regional default.
Raleigh crawl space questions

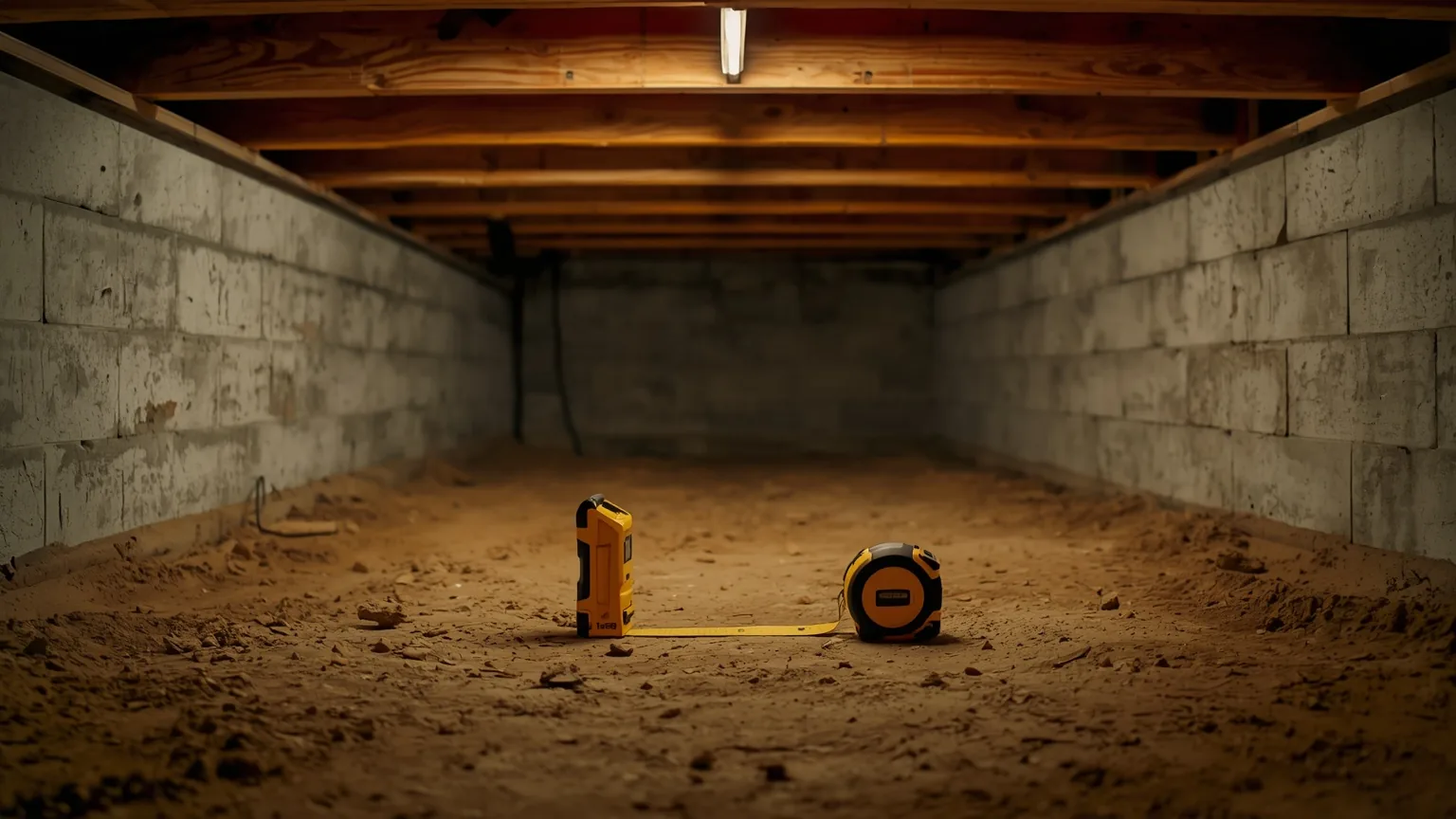

How much does crawl space encapsulation cost in Raleigh?
It depends on the specifics of the space, and any figure quoted before someone has been under your house is a guess. What moves the number most is square footage and clearance height, whether drainage has to go in before the liner, whether existing insulation must be removed and disposed of, and whether structural repair is needed first. Ask for the scope itemized rather than bundled — two quotes both labeled encapsulation can describe genuinely different work, and in North Carolina you can check both against code R409.
Does crawl space encapsulation require a permit in Raleigh?
Yes. The NC Office of State Fire Marshal has confirmed that converting a vented crawl space to a closed crawl space requires a permit regardless of the cost of the job. Related work usually carries its own permits as well — a dedicated circuit for a dehumidifier under the NC Electrical Code, or a supply duct under the NC Mechanical Code. Ask a contractor which permits they intend to pull and who is pulling them.
Why is my crawl space damp in summer when it has not rained?
Because the water is arriving as air rather than as rain. Warm outdoor air carries far more moisture than cool air, and when it enters through the vents and meets surfaces below its dew point — ductwork, supply lines, the underside of the subfloor — the vapor condenses onto them as liquid water. In a Raleigh summer that mechanism can put more water into a crawl space than a storm does, which is why the problem often peaks in still August weather and why adding more vents makes it worse.
Do I need encapsulation, or just a vapor barrier?
A vapor barrier covers the ground so soil moisture stops evaporating into the space. Encapsulation does that, seals the vents and rim joists so outside air stops entering, and then actively manages the humidity of the sealed space. A barrier alone can be enough where the crawl space is genuinely dry and ground evaporation is the main source. Where humid outside air is condensing on cool surfaces, covering the ground does not reach that water at all.
Should the liner run all the way up to the floor joists?
No — and in North Carolina it must not. Code section R409.2.2.1 requires a clear, unobstructed gap of at least 3 inches between the top of the wall liner and the bottom of the wood sill, so a termite inspector can still read the foundation wall. Liner taken right up to the sill plate is a code defect rather than a premium detail, and it is one of the easiest things for a homeowner to check after the work is finished.
How do I know if my crawl space has a problem?
The common signs are insulation that has fallen or matted, a musty smell on the ground floor that returns every summer, floors that feel springy or have started to slope, condensation or rust on ductwork and pipes, standing water after rain, and indoor humidity the air conditioner never quite pulls down. Any one of them justifies an evaluation. None of them, on its own, tells you which repair is needed.
Do you do the work yourselves?
No. Raleigh Crawl Space Solutions is an advertising and lead-routing service. We connect Raleigh-area homeowners with independent crawl space contractors, and the contractor you speak with performs the work and holds the applicable license and insurance.
Find out what is actually causing it.
An on-site evaluation with real moisture readings, and a written scope before any work is quoted.
